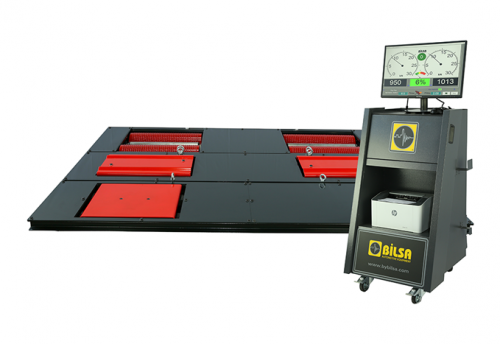

BİLSA FTS 4020 is a line that is used for Preliminary Inspection, Service Admission, Manufacturing Final Check, Inspection Tests and Training at European Standards.
BİLSA FTS 4020 Test Line;
Measurement according to Official Measurements and Manufacturer’s Values
Possible to enter the official measurement limits on the device so that when the device are out of these limits, the colors on the display automatically change and, these values are also clearly indicated on the printout.
Measurement Results and Customer Details
You are able to save all the results from the measurements carried out with the device and, the respective customer details with no limitation.
Data Processing Unit
The data processing units consists of a wheeled table, computer, monitor, A4 printer, keyboard, mouse and electric & electronic circuits.
GENEL | |
Sıcaklık | -10 + 45 °C |
Software(Yazılım) | Win 10 Türkçe |
Voltaj | 3/NPE 380 ± %10 V AC V |
Frekans | 50 ± %3 |
V Otomat Sigorta | 3×32 A |
Gerekli Kablo | 4×6 mm² |
FREN TEST CİHAZI | |
Ölçüler | 2700mmx 760 mm x 320 mm |
Dingil(Aks) Ağırlığı | 4 ton |
Motor Gücü | 2 x 3 kW – (2×4 kW) |
Test Hızı | 5-6 km/h |
Ölçüm Sınırı | 0-12 kN |
Rulo (Roller) Çapı (Ø) | Ø220mm |
Rulo Uzunluğu | 750 mm |
Rulo Et Kalınlığı | 12 mm |
Rulo Mil Çapı (Ø) | Ø40 mm |
Rulo Kaplaması | Gazaltı Kaynak/Kumlu Kaplama |
SÜSPANSİYON TEST CİHAZI | |
Motor Gücü | 2×3 kW |
Test Metodu | Eusama |
YANAL KAYMA TEST CİHAZI | |
Ölçüm Aralığı | 0 +/- 25 mm/m |
TEKERLEKLİ SEHPA | |
Ölçüler | 600 x 570 x 1050 mm |
Ağırlık | 44 kg |
SİSTEM | |
Bilgisayar | Windows 10 |
Monitör | 23 ” LED |
Yazıcı | Deskjet |
Uzaktan Kumanda | 20 mt |
